NTN NSK Koyo 1221 1222 1222K 1202 1203 1204 1205 1206K 2206K 2207K 2208K 2217m 2218m Self Aligning Ball Bearings

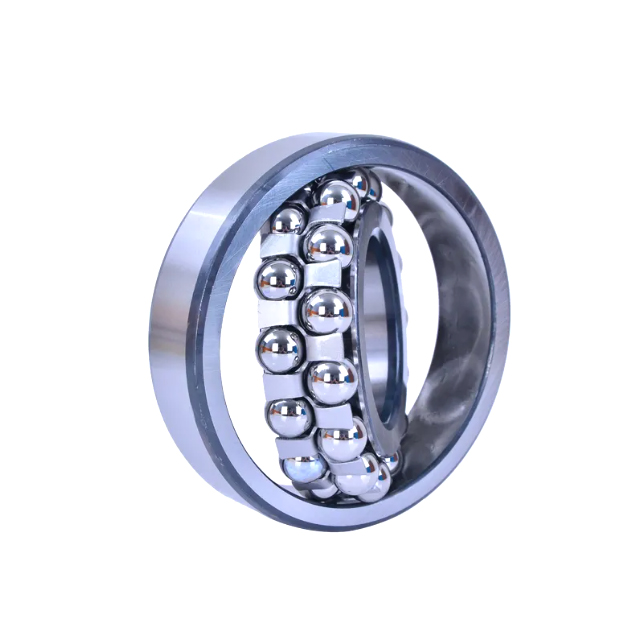

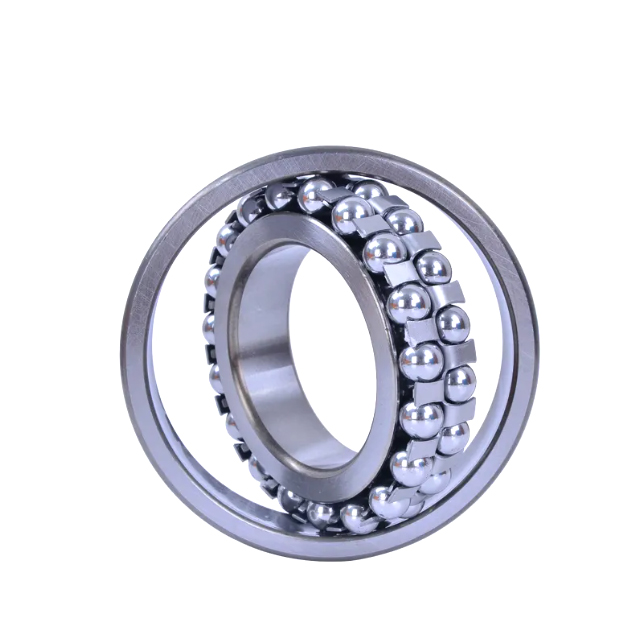

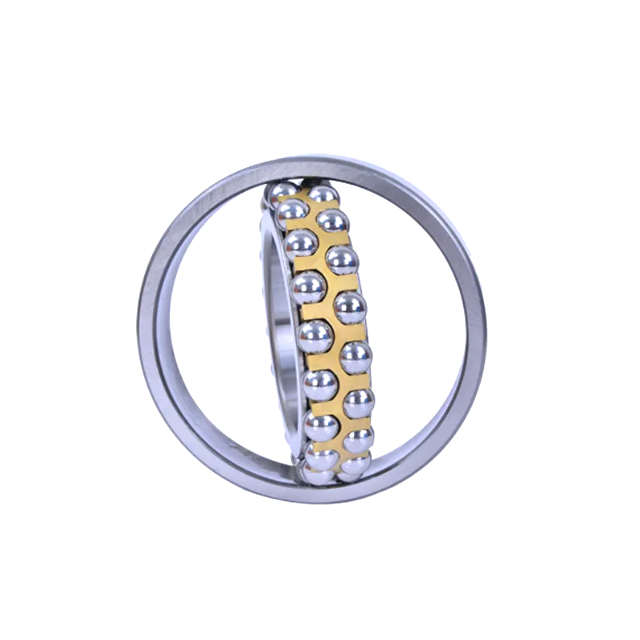

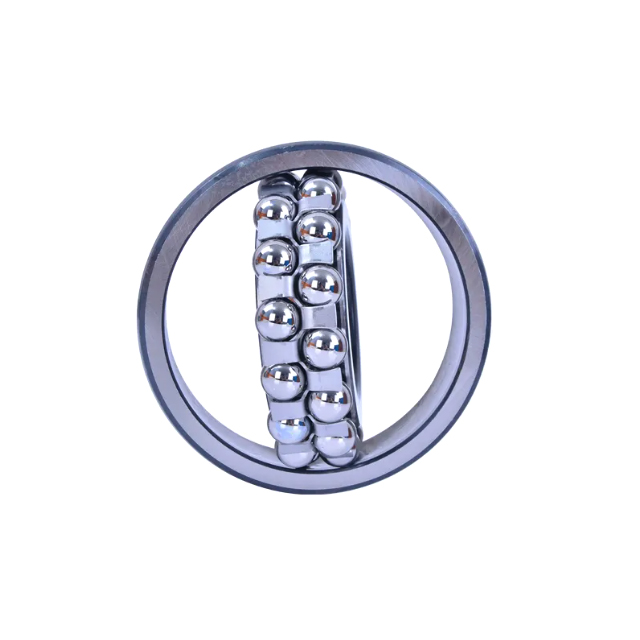

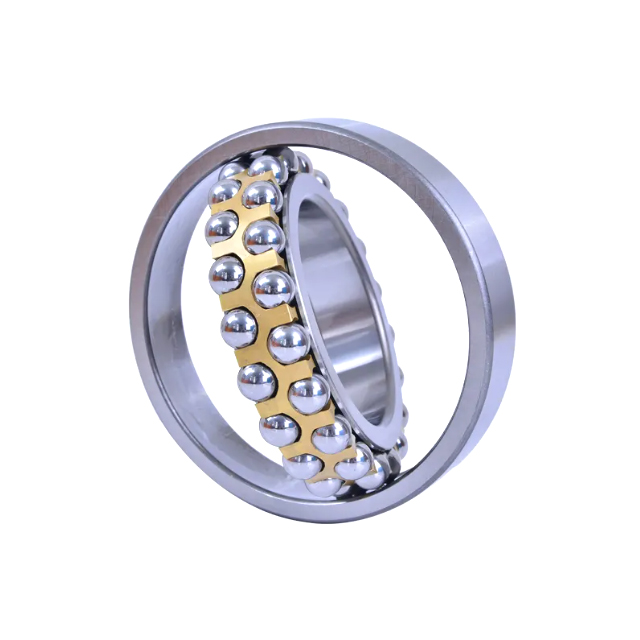

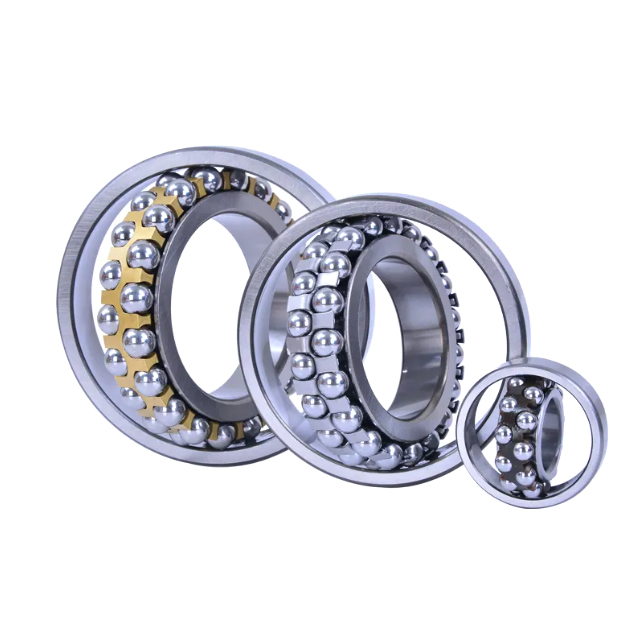

Self aligning ball bearing is a kind of bearing with spherical ball between the inner ring of two raceways and the outer ring with spherical raceway.
The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft and shell are flexed, it can be adjusted automatically without increasing the bearing load. Self aligning roller bearing can bear radial load and axial load in two directions. Radial load capacity, suitable for heavy load, shock load. The inner diameter of the inner ring is a taper hole bearing, which can be directly installed. Or it can be installed on the cylindrical shaft by using the fastening sleeve and the dismounting cylinder. The cages are made of steel stamping cages, polyamide forming cages and copper alloy car cages.
The self-aligning ball bearing has cylindrical hole and conical hole. The cage is made of steel plate and synthetic resin. Its feature is that the outer ring raceway is spherical, with automatic self-aligning, which can compensate the error of self-aligning ball bearing caused by different centrality and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.
It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work.
There are two kinds of bore in self-aligning ball bearings: cylindrical bore and conical bore. The taper of conical inner hole is 1:12 or 1:30. In order to enhance the lubrication performance of the bearing, an annular oil groove and three oil holes are machined on the outer ring of the bearing.
