BDL 1205 1206 1207 sufficient supply High Quality Self-Aligning Ball Bearing

Self aligning ball bearing is a kind of bearing with spherical ball between the inner ring of two raceways and the outer ring with spherical raceway.
  The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft and shell are flexed, it can be adjusted automatically without increasing the bearing load. Self aligning roller bearing can bear radial load and axial load in two directions. Radial load capacity, suitable for heavy load, shock load. The inner diameter of the inner ring is a taper hole bearing, which can be directly installed. Or it can be installed on the cylindrical shaft by using the fastening sleeve and the dismounting cylinder. The cages are made of steel stamping cages, polyamide forming cages and copper alloy car cages.
  The self-aligning ball bearing has cylindrical hole and conical hole. The cage is made of steel plate and synthetic resin. Its feature is that the outer ring raceway is spherical, with automatic self-aligning, which can compensate the error of self-aligning ball bearing caused by different centrality and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.
  It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work.
  There are two kinds of bore in self-aligning ball bearings: cylindrical bore and conical bore. The taper of conical inner hole is 1:12 or 1:30. In order to enhance the lubrication performance of the bearing, an annular oil groove and three oil holes are machined on the outer ring of the bearing.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 1205 1206 1207

  • BDL

  • 0

  • Self-Aligning Ball Bearing

  • Unseparated

  • Single

  • Self-Aligning Ball Bearing

  • Bearing Steel

  • Self-Aligning Ball Bearing

  • Wooden/ carton

  • C3

  • Without ABS

  • Hyundai

  • P6

  • ISQ9001


High Quality 1205 1206 1207 Self-Aligning Ball Bearing
Self aligning ball bearing is a kind of bearing with spherical ball between the inner ring of two raceways and the outer ring with spherical raceway.
  The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft and shell are flexed, it can be adjusted automatically without increasing the bearing load. Self aligning roller bearing can bear radial load and axial load in two directions. Radial load capacity, suitable for heavy load, shock load. The inner diameter of the inner ring is a taper hole bearing, which can be directly installed. Or it can be installed on the cylindrical shaft by using the fastening sleeve and the dismounting cylinder. The cages are made of steel stamping cages, polyamide forming cages and copper alloy car cages.
  The self-aligning ball bearing has cylindrical hole and conical hole. The cage is made of steel plate and synthetic resin. Its feature is that the outer ring raceway is spherical, with automatic self-aligning, which can compensate the error of self-aligning ball bearing caused by different centrality and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.
  It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work.
  There are two kinds of bore in self-aligning ball bearings: cylindrical bore and conical bore. The taper of conical inner hole is 1:12 or 1:30. In order to enhance the lubrication performance of the bearing, an annular oil groove and three oil holes are machined on the outer ring of the bearing.

Product name Self-aligning ball Bearings
Material Bearing Steel
Standard DIN GB ISO JIS
Bearing Package Barreled, bagged, boxed, palletized or as customers' requirement.
Service OEM service provided
Delivery time 3-10 days depends on quantity needed
  Features & Advantages:

1. Self-Aligning Capability
- Compensates for angular misalignment (typically 2°-3°) between shaft and housing, reducing installation error effects.

2. Low-Friction Design
- Optimized rolling element and raceway configuration ensures smooth operation, suitable for medium-to-high speed applications.

3. Wide Applicability
- Commonly used in drive shafts, agricultural machinery, textile equipment, and other applications prone to alignment deviations.

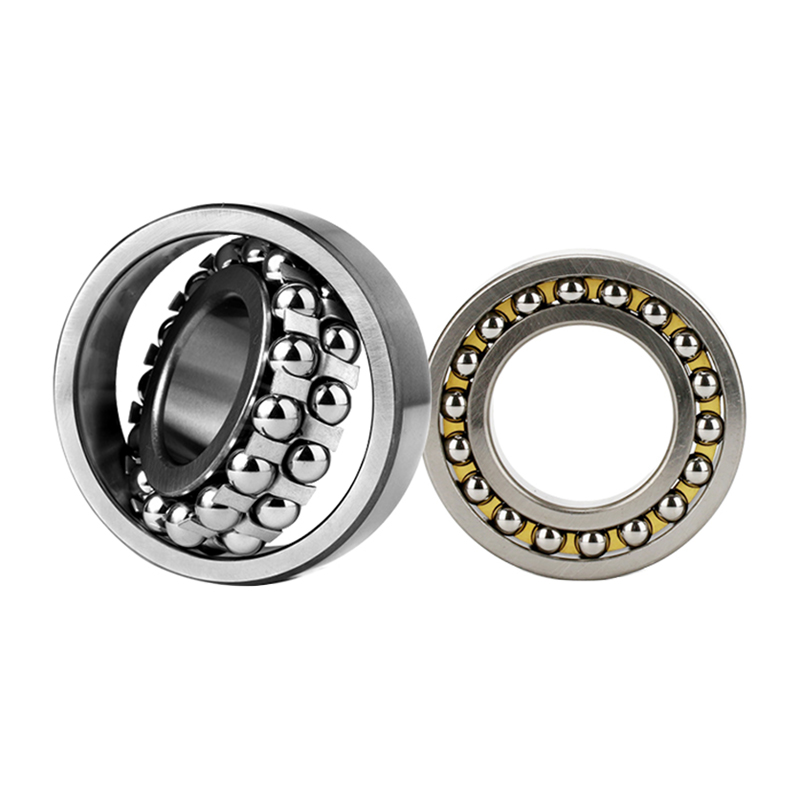

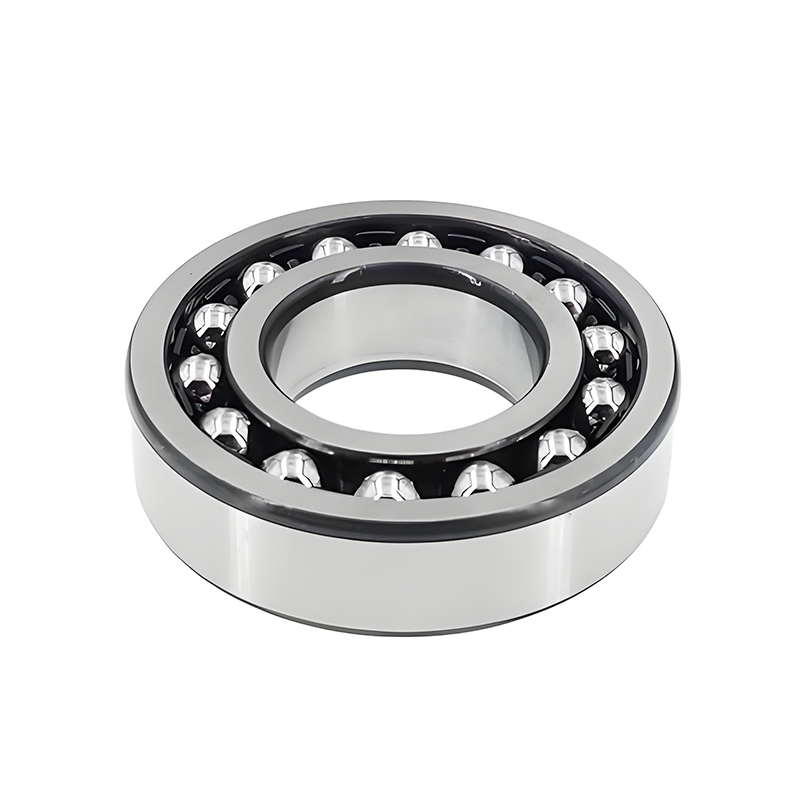

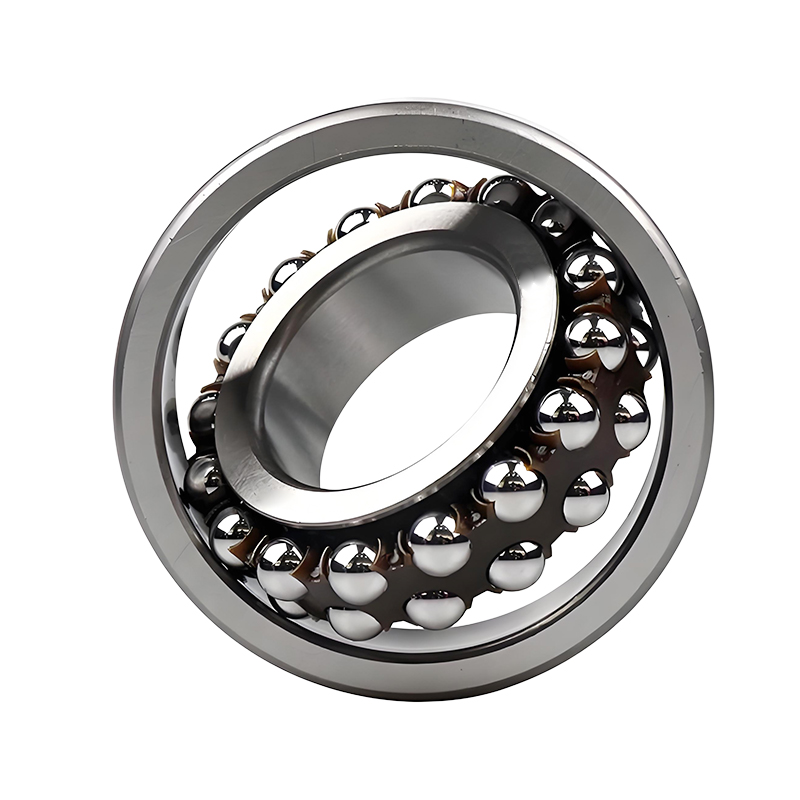

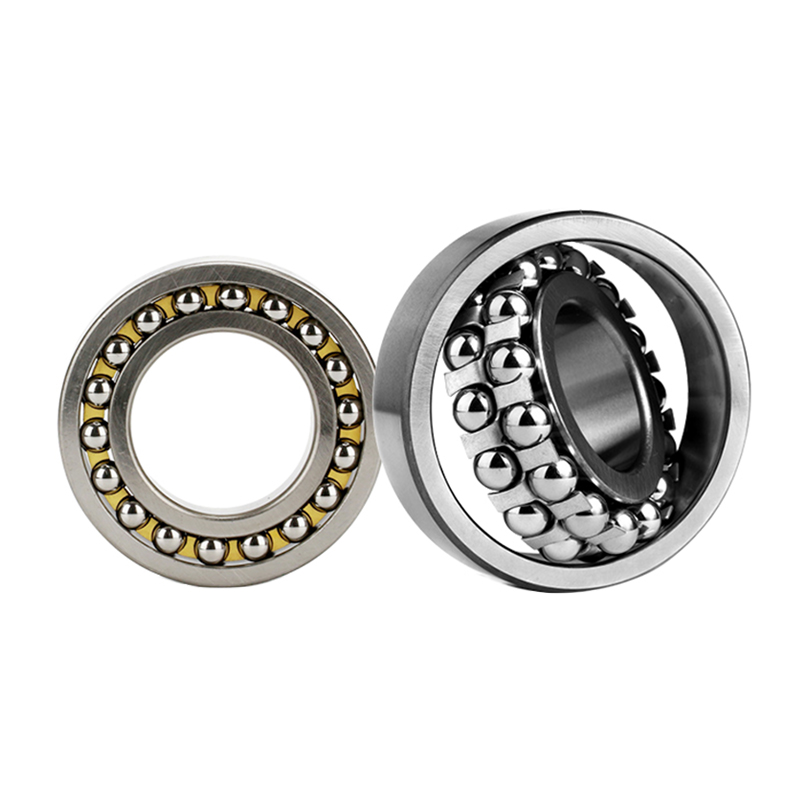

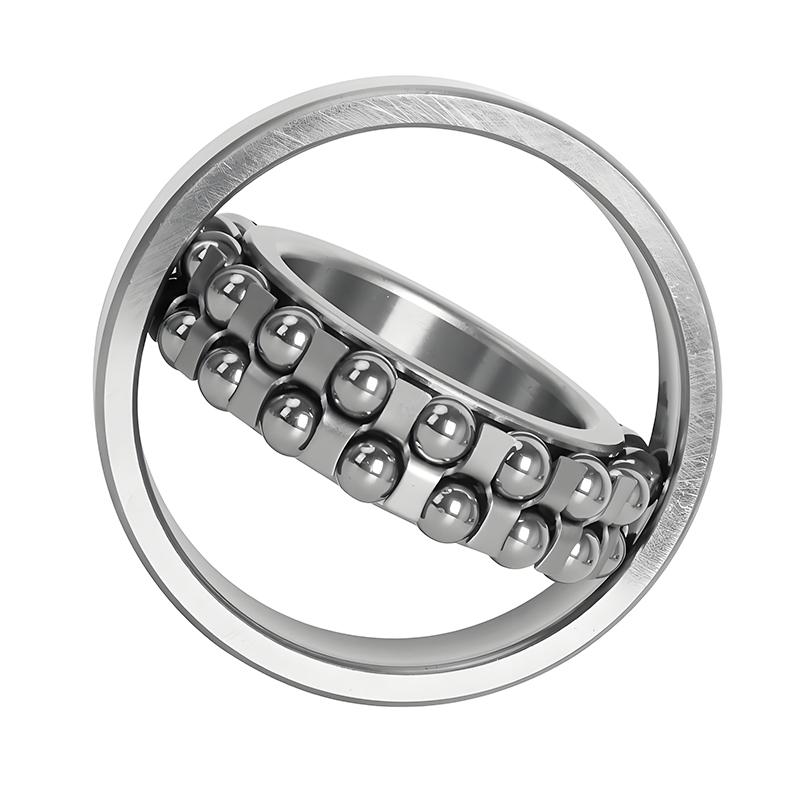

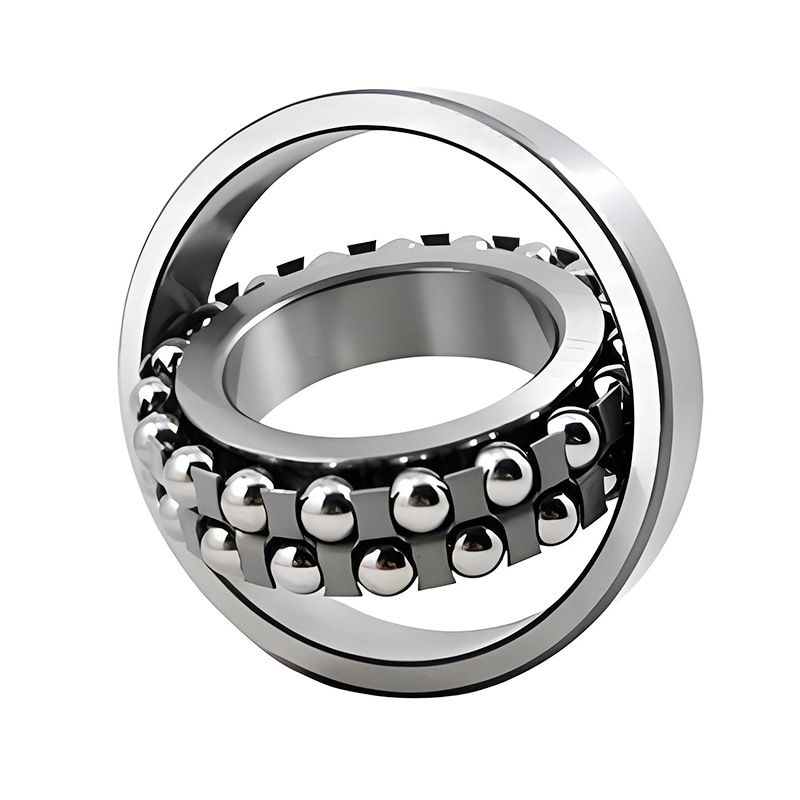

Detailed Photos

High Quality 1205 1206 1207 Self-Aligning Ball BearingHigh Quality 1205 1206 1207 Self-Aligning Ball BearingHigh Quality 1205 1206 1207 Self-Aligning Ball Bearing

Product Parameters





Cylindrical bore Tapered hole
d D B rsmin e Y1 Y2 Y0 old spec Designations old spec Designations
25 52 15 1 0.28 2.2 3.5 2.5
1205TN1


62 17 1.1 0.28 2.2 3.5 2.5
1305TN1













30 62 16 1 0.25 2.5 3.87 2.62 1206 1206 111206 1206K

62 20 1 0.39 1.63 2.53 1.71 1506 2206 111506 2206K

62 20 1 0.39 1.63 2.53 1.71 1506A 2206TN1


72 27 1.1 0.44 1.43 2.22 1.5 1606 2306 111606 2306K

72 27 1.1 0.44 1.43 2.22 1.5 1606A 2306TN1













35 72 17 1.1 0.23 2.74 4.24 2.87 1207 1207 111207 1207K

72 17 1.1 0.23 2.74 4.24 2.87 1207A 1207TN1 111207A 1207KTN1

72 23 1.1 0.37 1.69 2.61 1.77 1507 2207 111507 2207K

72 23 1.1 0.37 1.69 2.61 1.77 1507A 2207TN1


80 21 1.5 0.25 2.56 3.97 2.69 1307 1307 111307 1307K

80 21 1.5 0.25 2.56 3.97 2.69 307A 1307TN1 111307A 1307KTN

80 31 1.5 0.46 1.36 2.11 1.43 1607 2307 111607 2307K

80 31 1.5 0.46 1.36 2.11 1.43 1607A 2307TN1













40 80 18 1.1 0.22 2.87 4.45 3.01 1208 1208 111208 1208K

80 18 1.1 0.22 2.87 4.45 3.01 1208A 1208TN1 111208A 1208KTN1

80 23 1.1 0.33 1.9 2.94 1.99 1508 2208 111508 2208K

80 23 1.1 0.33 1.9 2.94 1.99 1508A 2208TN1 111508A 2208KTN1

90 23 1.5 0.24 2.62 4.05 2.74 1308 1308 111308 1308K

90 23 1.5 0.24 2.62 4.05 2.74 1308A 1308TN1 111308A 1308KTN1

90 33 1.5 0.43 1.45 2.25 1.52 1608 2308 111608 2308K

90 33 1.5 0.43 1.45 2.25 1.52 1608A 2308TN1 111608A 2308KTN1












45 85 19 1.1 0.21 2.94 4.55 3.08 1209 1209 111209 1209K

85 19 1.1 0.21 2.94 4.55 3.08 1209A 1209TN1 111209A 1209KTN1

85 23 1.1 0.31 2.04 3.15 2.13 1509 2209 111509 2209K

85 23 1.1 0.31 2.04 3.15 2.13 1509A 2209TN1 111509A 2209KTN1

100 25 1.5 0.25 2.53 3.92 2.66 1309 1309 111309 1309K

100 25 1.5 0.25 2.53 3.92 2.66 1309A 1309TN1 111309A 1309KTN1

100 36 1.5 0.42 1.51 2.33 1.58 1609 2309 111609 2309K












50 90 20 1.1 0.2 3.13 4.85 3.28 1210 1210 111210 1210K

90 20 1.1 0.2 3.13 4.85 3.28 1210U1



90 20 1.1 0.2 3.13 4.85 3.28 1210A 1210TN1 111210A 1210KTN1

90 23 1.1 0.29 2.2 3.41 2.31 1510 2210 111510 2210K

90 23 1.1 0.29 2.2 3.41 2.31 1510A 2210TN1 111510A 2210TKN1

110 27 2 0.24 2.68 4.14 2.8 1310 1310 111310 1310K

110 40 2 0.42 1.49 2.3 1.56 1610 2310 111610 2310K












55 100 21 1.5 0.2 3.23 4.99 3.38 1211 1211 111211 1211K

100 21 1.5 0.2 3.23 4.99 3.38 1211A 1211TN1 111211A 1211KTNI

100 25 1.5 0.28 2.26 3.5 2.37 1511 2211 111511 2211K

120 29 2 0.23 2.7 4.18 2.83 1311 1311 111311 1311K

120 29 2 0.23 2.7 118 2.83 1311A 1311TN1 111311A 1311KTN1

120 43 2 0.41 1.53 2.36 1.6 1611 2311 111611 2311K












60 110 22 1.5 0.19 3.39 5.25 3.56 1212 1212 111212 1212K

110 22 1.5 0.19 3.39 5.25 3.56 1212A 1212TN1 111212A 1212KTN1

110 28 1.5 0.28 2.27 3.51 2.38 1512 2212 111512 2212K

110 28 1.5 0.28 2.27 3.51 2.38 1512A 2212TN1 111512A 2212KTN1

130 31 2.1 0.23 2.8 4.33 2.93 1312 1312 111312 1312K

130 31 2.1 0.23 2.8 4.33 2.93 1312A 1312TN1 111312A 1312KTN1

130 46 2.1 0.4 1.56 2.41 1.63 1612 2312 111612 2312K

150 35 2.1 0.22 2.81 4.35 2.95 1412



150 35 2.1 0.22 2.81 4.35 2.95 1412H














65 120 23 1.5 0.17 3.71 5.73 3.88 1213 1213 111213 1213K

120 23 1.5 0.17 3.71 5.73 3.88 1213A 1213TN1 111213A 1213KTN1

120 31 1.5 0.28 2.25 3.48 2.35 1513 2213 111513 2213K

140 33 2.1 0.23 2.78 4.31 2.92 1313 1313 111313 1313K

140 48 2.1 0.38 1.65 2.55 1.72 1613 2313 111613 2313K












70 125 24 1.5 0.18 3.51 5.44 3.68 1214 1214 111214 1214K

125 31 1.5 0.27 2.36 3.66 2.48 1514 2214 111514 2214K

150 35 2.1 0.22 2.81 4.35 2.95 1314 1314 111314 1314K

150 51 2.1 0.39 1.62 2.5 1.69 1614 2314













75 130 25 1.5 0.17 3.6 5.58 3.77 1215 1215 111215 1215K

130 31 1.5 0.25 2.49 3.86 2.61 1515 2215 111515 2215K

160 37 2.1 0.22 2.84 4.39 2.97 1315 1315 111315 1315K

160 55 2.1 0.38 1.66 2.56 1.73 1615 2315 111615 2315K

160 55 2.1 0.38 1.66 2.56 1.73 1615A 2315TN1













80 140 26 2 0.16 3.94 6.1 4.13 1216 1216 111216 1216K

140 26 2 0.16 3.94 6.1 4.13 1216A 1216TN1 111216A 1216KTN1

140 33 2 0.25 2.49 3.86 2.61 1516 2216 111516 2216K

170 39 2.1 0.22 2.92 4.52 3.06 1316 1316 111316 1316K

170 58 2.1 0.39 1.63 2.53 1.71 1616 2316 111616 2316K

170 58 2.1 0.39 1.63 2.53 1.71 1616A 2316TN1


170 58 2.1 0.39 1.63 2.53 1.71 1616H 2316M













85 150 28 2 0.17 3.69 5.7 3.86 1217 1217 111217 1217K

150 36 2 0.25 2.48 3.84 2.6 1517 2217 111517 2217K

180 41 3 0.22 2.9 4.49 3.04 1317 1317 111317 1317K

180 60 3 0.38 1.67 2.59 1.75 1617 2317 111617 2317K












90 160 30 2 0.17 3.76 5.81 3.94 1218 1218 111218 1218K

160 40 2 0.27 2.36 3.65 2.47 1518 2218 111518 2218k

190 43 3 0.22 2.81 4.35 2.94 1318 1318


190 43 3 0.22 2.81 4.35 2.94 1318K
111318K

190 64 3 0.38 1.67 2.58 1.74 1618 2318 111618 2318k

190 64 3 0.38 1.64 2.54 1.72 1618K
111618K












95 170 32 2.1 0.17 3.68 5.69 3.85 1219 1219 111219 1219K

170 43 2.1 0.26 2.38 3.69 2.5 1519 2219 111519 2219K

200 45 3 0.23 2.77 4.29 2.9 1319 1319 111319 1319k

200 67 3 0.38 1.68 2.59 1.76 1619K
111619K












100 180 34 2.1 0.17 3.64 5.63 3.81 1220 1220 111220 1220K

180 34 2.1 0.17 3.64 5.63 3.81 1220K
1112320K

180 46 2.1 0.27 2.34 3.62 2.45 1520 2220 111520 2220k

180 46 2.1 0.27 2.34 3.62 2.45 1520K
111520K

215 47 3 0.24 2.67 4.13 2.8 1320 1320


215 47 3 0.24 2.67 4.13 2.8 1320K
111320K

215 73 3 0.37 1.69 2.62 1.77 1620 2320 111620 2320K

215 73 3 0.37 1.69 2.62 1.77 1620A 2320TN1


215 73 3 0.37 1.69 2.62 1.77 1620K1 2320J 111620K1 2320KJ












105 190 36 2.1 0.18 3.55 5.5 3.72 1221 1221


225 77 3 0.39 1.64 2.53 1.71 1621 2321













110 200 38 2.1 0.17 3.64 5.64 3.82 1222 1222 111222 1222K

200 38 2.1 0.17 3.64 5.64 3.82 1222K
111222K

200 53 2.1 0.28 2.25 3.49 2.36 1522 2222 111522 2222k

200 53 2.1 0.28 2.25 3.49 2.36 1522K
111522K

240 50 3 0.22 2.83 4.39 2.97 1322 1322 111322 1322k

240 50 3 0.22 2.83 4.39 2.97 1322K
111322K

240 80 3 0.38 1.67 2.59 1.75 1622 2322 111622 2322K

240 80 3 0.38 1.67 2.59 1.75 1622A 2322TN1


240 80 3 0.38 1.67 2.59 1.75 1622K1 2322J 111622K1 2322KJ












120 215 42 2.1 0.2 3.21 4.97 3.36 10001224



215 42 2.1 0.2 3.21 4.97 3.36 1001224K



215 42 2.1 0.2 3.21 4.97 3.36 1111224K














140 250 50 3 0.2 3.12 4.83 3.27 1001228



Packaging & Shipping



High Quality 1205 1206 1207 Self-Aligning Ball Bearing
Company Profile

High Quality 1205 1206 1207 Self-Aligning Ball Bearing          Shandong Shunwei Bearing Co., Ltd. is a bearing research, development, sales as one of the bearing manufacturers, we adhere to the "quality first, service first, continuous improvement, innovation, to meet the customer" business principles, to "zero defects, zero complaints" as the quality goal. The company has modern production equipment and advanced testing instruments, specializing in the production of bearings, including deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, self-aligning roller bearings, etc. Shunwei bearing is widely used in metallurgy, mining, petroleum, chemical, coal, cement, paper, wind power, heavy machinery, construction machinery, port machinery and other industries of complete sets of products. The company has the right to import and export, products are not only sold all over the country, but also exported to the United States, Canada, Italy, Russia, Germany, South Africa and other countries and regions. Learning from foreign advanced bearing enterprises, Shunwei people continue to work hard to create high-quality bearings made in China. The company′s mission is to revitalize the national industry, inject vitality into the local economy, and promote the coordinated and harmonious development of the company, society and nature. The company adheres to the business philosophy of "diligent development, sincere service, careful manufacturing, brand strategy", and cooperates with domestic and foreign customers on the principle of honesty and fairness. The company takes meticulous quality control measures to improve products and services, and provides high-quality products and services for global customers.
High Quality 1205 1206 1207 Self-Aligning Ball Bearing
Our Advantages

Our Advantages:
1. World-Class Bearing: We provide our customers with all types of indigenous bearing with world-class quality.
2. OEM or Non-Stand Bearings: Any requirement for Nonstandard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
3. Genuine products With Excellent Quality: The company has always proved the 100% quality products it provides with genuine intent.
4. After Sales Service and Technical Assistance: The company provides after-sales service and technical assistance as per the customer's requirements and needs.
5. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

SAMPLES
1. Samples quantity: 1-10 PCS are available.
2. Free samples: It depends on the Model No., material and quantity. Some of the bearings samples need client to pay samples charge and shipping cost.
3. It's better to start your order with Trade Assurance to get full protection for your samples order.

CUSTOMIZED
The customized LOGO or drawing is acceptable for us.

MOQ
1. MOQ: 10 PCS standard bearings.
2. MOQ: 1000 PCS customized your brand bearings.

OEM POLICY
1. We can printing your brand (logo, artwork)on the shield or laser engraving your brand on the shield.
2. We can custom your packaging according to your design
3. All copyright own by clients and we promised don't disclose any info.
High Quality 1205 1206 1207 Self-Aligning Ball Bearing

FAQ

1.What is the minimum order quantity for this product?
    Can be negotiated, we will try our best to meet customer needs.Our company is mainly based on wholesale sales, most customers'orders are more than 1 ton.
2.What is your latest delivery time?
    Most orders will be shipped within 7-15 days of payment being received.
3.Does your company have quality assurance?
    Yes, for 1 years.
4.What is the competitiveness of your company's products compared to other companies?
    High precision, high speed, low noise.
5.What are the advantages of your company's services compared to other companies?
    Answer questions online 24 hours a day, reply in a timely manner, and provide various documents required by customers for customs clearance or sales. 100% after-sales service.
6.Which payment method does your company support?
    Do our best to meet customer needs, negotiable.
7.How to contact us quickly?
    Please send us an inquiry or message and leave your other contact information, such as phone number, whatsapp account or wechat account, we will contact you as soon as possible and provide the detailed information you need.
Please feel free to contact us, if you have any other question
